Favored Air Conditioning Copper pipe
Are you looking for reliable air conditioning copper pipes for air conditioning systems, refrigeration equipment, and other industrial applications? We provide air conditioning copper pipe product
Contact our WWX team today for your Air Conditioning Copper pipe solution
This article will introduce seamless copper pipes used in industrial sectors such as air conditioning, refrigeration and oil transportation’s detailed buyer’s guide, providing you with high-quality seamless copper pipe solutions for airconditioning and refrigeration and 24/7 customized services to meet your every idea and plan.

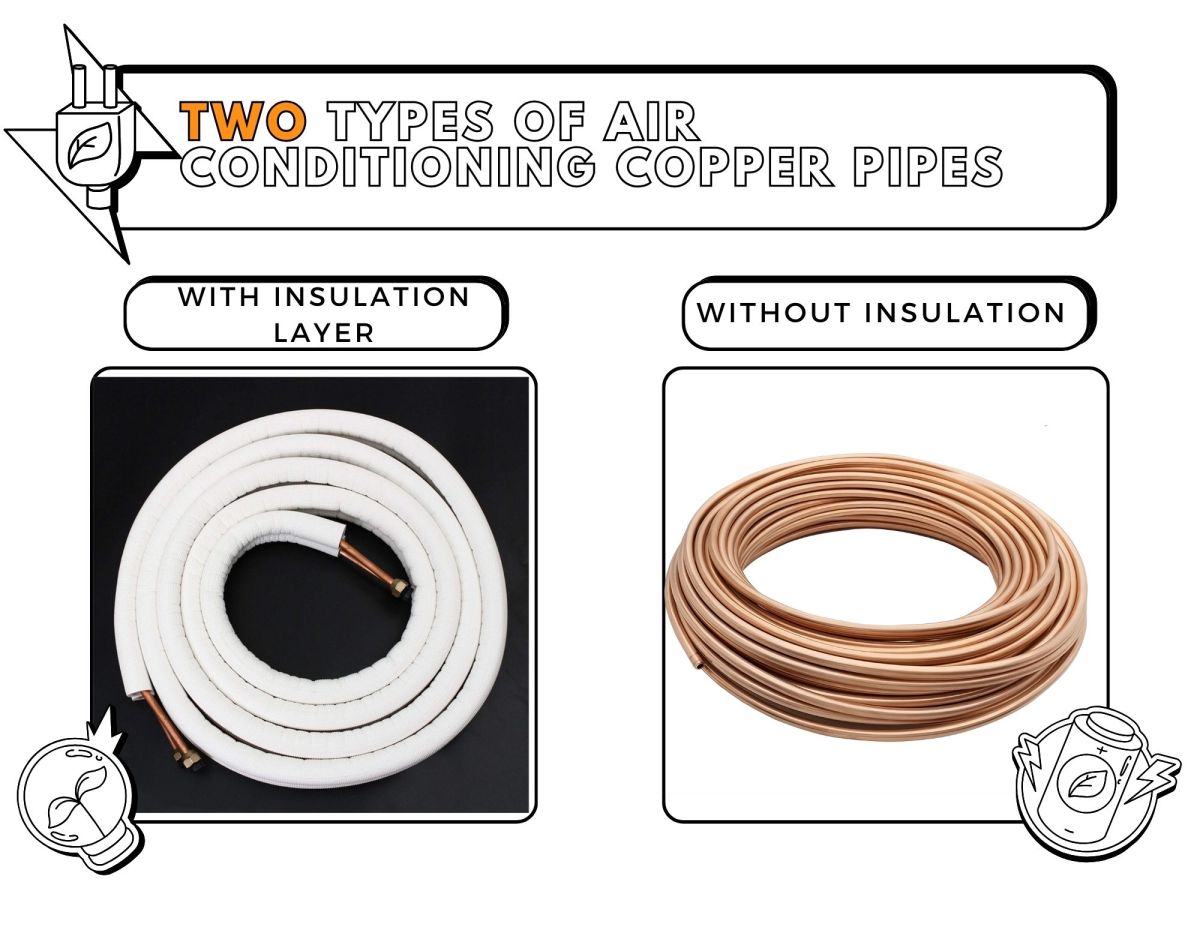

There are two types of air conditioning copper pipes, one with insulation layer and the other without insulation layer.
Classification of Air Conditioning Copper pipe
- Seamless Copper Tube: A copper tube throughout the entire manufacturing process with a continuous surrounding surface.
- Copper Pancake Coil: A full-length copper tube wound into a series of adjacent coils.
- Flat Spiral Copper Coil: Continuously wound into a series of adjacent circles and rolled up in a regular manner, forming a whole tube with approximately circular cross-section.
- Mosquito Coil-shaped Copper Coil: Spirally wound into a disc-shaped single layer or double layer, resembling the shape of a mosquito coil.
- Layer-wound Copper Coil: When winding the copper tube, each coil is wound in layers parallel to the axis of the coil, ensuring that adjacent coils in any layer are tightly packed.
What is Air Conditioning Copper pipe？
- Air conditioning copper pipes refer to the pipes used for the flow of refrigerant in air conditioning systems, typically made of copper. The copper pipes in air conditioning systems serve two main functions: conveying refrigerant and connecting various components such as the evaporator, condenser, compressor, etc.
- The refrigeration cycle in air conditioning systems involves processes such as compression, cooling, expansion, and evaporation of the refrigerant. Copper pipes, due to their good thermal conductivity and corrosion resistance, efficiently transfer the refrigerant and possess adequate strength and machinability, making them an ideal choice for manufacturing pipes in air conditioning systems.
- These copper pipes, by connecting various components, form a closed-loop system, allowing the refrigerant to circulate within the system and complete the refrigeration process. The use of copper pipes helps maintain the efficiency and reliability of the refrigeration system.

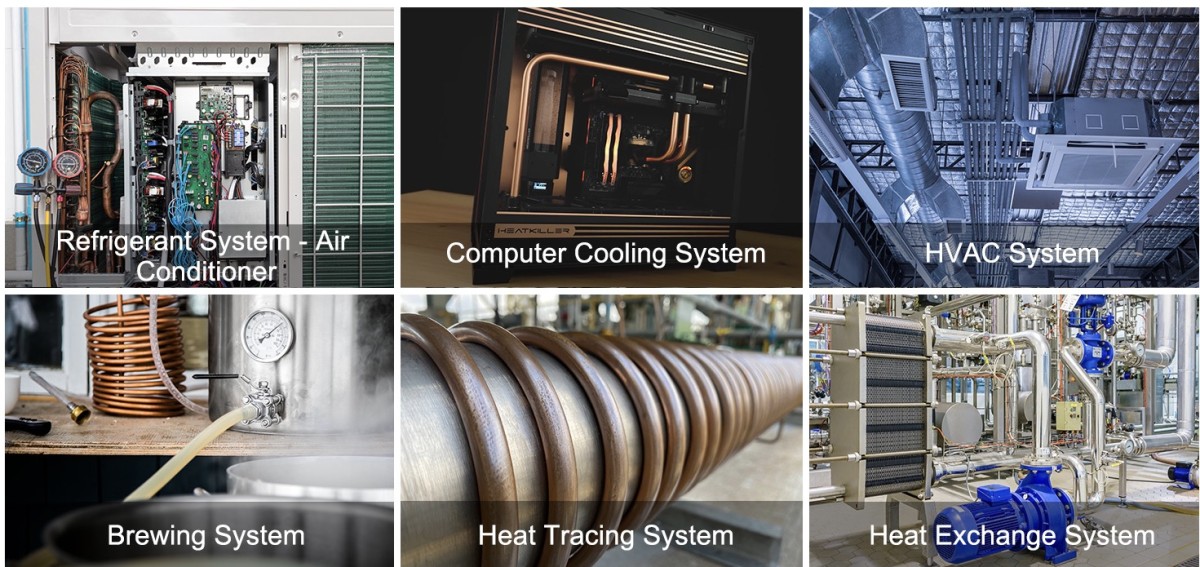

- Refrigerant System
- computer cooling system
- HVAC system
- Brewing System
- Heat Tracing System
- Heat exechange system
Brand, status and specifications of Air Conditioning Copper pipe
Air conditioning copper tube is also called ac copper tube, where ac is the abbreviation of Air conditioning.
How to install Air Conditioning Copper pipe?
- Preparation: Before installing the air conditioning copper pipes, it is essential to understand the installation requirements and specifications of the air conditioning system. Ensure that the installation location has good ventilation and clean the installation area.
- Measurement and Cutting: Based on the design blueprints or actual conditions, use appropriate tools to measure the length of the air conditioning copper pipes. Utilize a copper pipe cutter to cut them into the required lengths, ensuring smooth edges without burrs.
- Bending and Connection: According to installation needs and design requirements, use elbow fittings and a pipe bender to bend the air conditioning copper pipes. Pay attention to maintaining the integrity of the pipe walls to prevent breakage or deformation. Connect the air conditioning copper pipes to the air conditioning main unit and indoor unit using welding or compression methods.
- Vacuum Pump for Evacuation: After connecting the air conditioning copper pipes, use a vacuum pump to perform an evacuation process on the air conditioning system. This step is crucial for removing air and impurities from the pipes, ensuring the normal operation of the system.
- Refrigerant Charging: Following the evacuation process, introduce the appropriate amount of refrigerant into the air conditioning system through the refrigerant interface. The refrigerant charging amount should be accurately calculated based on the specifications of the air conditioning unit and the manufacturer’s requirements.
- Inspection and Testing: After completing the above steps, conduct a comprehensive inspection of the installed air conditioning copper pipes. Ensure there are no leaks, and every connection is securely fastened. Start the air conditioning system and test its cooling efficiency and operational status.
Air conditioning copper pipe display
What are the advantages of air conditioning copper pipes?
- Excellent thermal conductivity: Copper is an excellent thermal conductive material that helps transfer heat quickly and efficiently. This helps the air conditioning system regulate temperature more efficiently.
- Strong corrosion resistance: Air conditioning copper pipes are highly resistant to corrosion by oxygen and water vapor, which helps extend the service life of the system.
- Easy to process and form: Copper has good processability and is easy to bend and form, which helps to manufacture complex-shaped piping systems and makes installation more flexible.
- High strength and durability: Air conditioning copper pipes have high strength and can withstand certain pressures and loads, and their durability makes them less susceptible to damage during long-term use.
- Not easy to leak: The welded connection of air conditioning copper pipes is firm and not easy to leak, which is crucial to the reliability of the air conditioning system.
- Good electrical conductivity: Copper is a good conductive material, which may be useful in some special air conditioning systems, especially systems that require electronic controls or sensors.
How are air conditioning copper pipes made?
- Copper material preparation: The first step in manufacturing air conditioning copper pipes is to prepare the copper material. High-purity copper is usually used as the raw material, which helps ensure the thermal conductivity and corrosion resistance of copper pipes. The copper block is heated to a sufficient temperature and then rolled, drawn or extruded to form a preliminary copper tube shape.
- Cold rolling and hot rolling: Copper pipes are cold rolled or hot rolled to adjust the diameter and wall thickness of the pipe. Cold rolling is generally used to produce thin-walled tubes, while hot rolling is used to produce thicker tubes.
- Annealing treatment: In order to improve the plasticity and thermal conductivity of copper pipes, copper pipes usually undergo an annealing treatment process. This involves heating copper pipes to a certain temperature and then slowly cooling them.
- Cleaning and Coating: Copper pipes may have some oxides or impurities on their surface, so they need to be cleaned. In some cases, copper pipes may also be coated to improve their corrosion resistance.
- Pipe Cutting: Copper pipe is often cut to appropriate lengths to meet the needs of different applications.
- Forming and Welding: Copper tubing can be formed in a variety of ways, such as bending, flaring, or constricting, to suit specific system designs. The connection points are usually soldered to ensure a strong connection.
- Testing and Quality Control: Once manufactured, copper tubing may undergo a variety of tests, including dimensional inspections, pressure testing and non-destructive testing, to ensure it meets specifications and quality standards.
- Packaging and leaving the factory: Finally, after strict quality inspection, the copper pipes are packaged and ready to leave the factory to be supplied to manufacturers of air conditioning systems or other related industries.
Refrigeration principle of air conditioning copper pipe
- Compressor: One of the core components of the refrigeration system. The compressor is responsible for sucking in low-temperature and low-pressure evaporation gas and compressing it into high-temperature and high-pressure gas. Release heat through air conditioning copper pipes
- Condenser (Condenser): The high-temperature and high-pressure gas flows through the condenser and comes into contact with the outside air or cooling medium, so that the gas is cooled and converted into a high-pressure liquid. During this process, the system releases heat.
- Expansion Valve: The expansion valve of the high-pressure liquid passing through the copper pipe of the air conditioner slows down, the pressure drops sharply, and the liquid turns into a low-temperature and low-pressure mist liquid. This process causes the temperature of the refrigerant to plummet.
- Evaporator: The low-temperature and low-pressure mist liquid enters the evaporator, contacts the indoor air, absorbs heat and evaporates into steam. This makes the evaporator surface cold, which serves to cool the indoor air.
- The cycle starts again: the evaporated low-pressure steam is sucked into the compressor again, and the entire refrigeration cycle starts again
